一、Product Overview

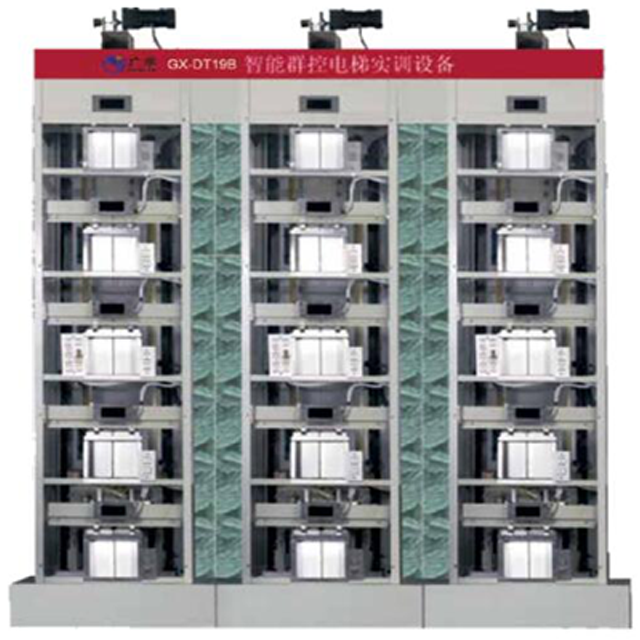

The equipment is controlled by an AC frequency converter and PLC through two modes: switch or digital, and dozens of common circuit faults are set for students to operate. The entire equipment adopts three five story group controlled elevators, each controlled by a PLC. Data is exchanged between PLCs through RS-485 serial communication cards, and elevator outbound calls are managed uniformly, which is close to the control of building elevators in reality. Through it, students can not only improve their ability to detect and troubleshoot faults, but also understand the principles of online programming for multiple PLCs, thereby improving their programming skills. The communication interface of the entire system adopts an open structure and can be connected to the teaching network, which can become a part of the building intelligent control system. This system is equipped with an intelligent assessment software system, which can perform intelligent assessments on a computer. Suitable for use in universities, vocational schools, vocational schools, or elevator majors.
二、Technical Parameter
1)Input power supply: AC380V ± 10% (three-phase five wire) 50Hz；
2)Rated power: ≤ 1KW；
3)Environmental temperature: -10 ℃~40 ℃；
4)Relative humidity: ≤ 85%；
5)Overall dimensions: 2600 ×?860× 2800mm；
6)Control cabinet: 800 ×?520× 1800mm；
7)Frequency converter: FR-E540-0.4K-CH (or equivalent mainstream brand frequency converter)；
8)PLC: Mitsubishi FX3U-64MR (or equivalent mainstream brand PLC)；
9)Control method: switch/digital dual control and VVVF technology；
10)Number of floors: five floors and five stations × Three sets；
11)Traction machine power: 90W/380V, equipment weight: 1000Kg。
三、Practical training projects
1.Demonstration of single elevator operation;
2.Demonstration of elevator group control operation;
3.Demonstration of elevator safety protection devices;
4.Demonstration of elevator door system operation;
5.Elevator operation status monitoring;
6.Practical training on elevator operation speed regulation;
7.Elevator door machine speed regulation training;
8.Practical training on elevator troubleshooting;
9.Elevator programming training.
